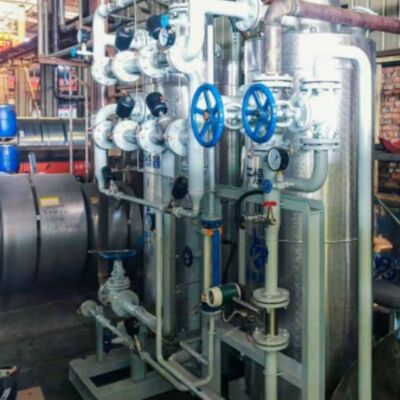

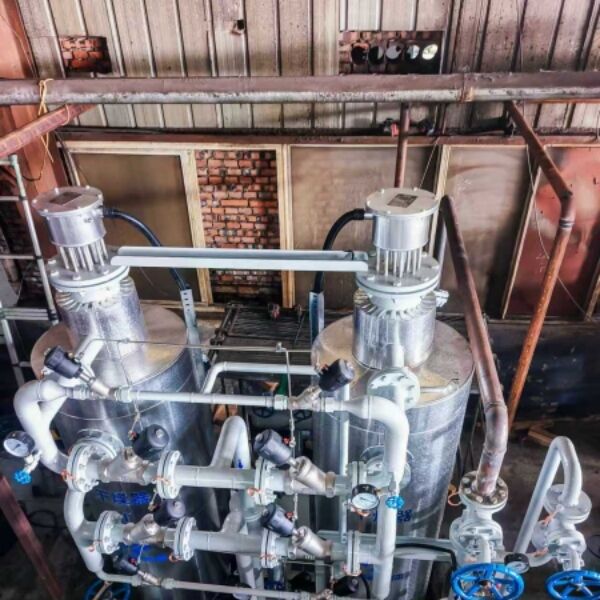

Skid Mounted Design Ammonia Dissociation Unit With Pressure Vessel Rated
পণ্যের বিবরণ:
| উৎপত্তি স্থল: | চীন |
| পরিচিতিমুলক নাম: | KERONG GAS |
| সাক্ষ্যদান: | ISO9001 |
| মডেল নম্বার: | এএনএইচ, এনএইচপি |
প্রদান:
| ন্যূনতম চাহিদার পরিমাণ: | 1 পিসি |
|---|---|
| মূল্য: | negotiable |
| প্যাকেজিং বিবরণ: | কাঠের বাক্স |
| ডেলিভারি সময়: | 8 সপ্তাহ |
| পরিশোধের শর্ত: | এল/সি, টি/টি, ওয়েস্টার্ন ইউনিয়ন, মানিগ্রাম |
| যোগানের ক্ষমতা: | প্রতি বছর 1000pcs |
|
বিস্তারিত তথ্য |
|||
| নাম: | অ্যামোনিয়া ডিসোসিয়েশন ইউনিট | অনুঘটক: | নিকেল অনুঘটক |
|---|---|---|---|
| শিশির পয়েন্ট: | -70 ℃ | উপাদান: | স্টেইনলেস স্টিল বা কার্বন ইস্পাত |
| ক্ষমতা: | 5Nm3/hr~250Nm3/hr | চাপ: | 0.5 বার বা তার বেশি |
| বিশেষভাবে তুলে ধরা: | Skid mounted ammonia dissociation unit,Ammonia cracker pressure vessel,Rated pressure ammonia dissociation system |
||
পণ্যের বর্ণনা
Skid Mounted Design Ammonia Dissociation Unit With Pressure Vessel Rated
Product description
Our Skid Mounted Design Ammonia Dissociation Unit with Pressure Vessel Rated Construction is designed to provide a reliable source of dissociated ammonia gas for heat treatment, annealing, brazing, and metallurgical applications. Utilizing advanced thermal dissociation technology, it converts ammonia into a hydrogen-rich nitrogen atmosphere with stable composition and consistent output. The skid-mounted, pre-assembled design enables easy transportation, rapid installation, and simplified commissioning. Built with pressure vessel-rated components and robust safety features, the unit ensures safe and dependable operation under demanding industrial conditions. Fully automatic, energy-efficient, and low-maintenance, it offers long service life and cost-effective protective atmosphere generation for a wide range of manufacturing processes.
Technical Parameters
Capacity: 5-250Nm³/h
Dew point :-70 ℃
Oxygen content: less than 3ppm
Ammonia content: less than 3ppm
| Model | Capacity | Power consumption | Liquid ammonia consumption | Cooling water consumption | Dimensions |
| (Nm3/h) | (KW) | kg/hr | m3/hr | mm | |
| ANH-NHP-5 | 5 | 6.5 | 1.89 | N/A | 1400*1180*1600 |
| ANH-NHP-10 | 10 | 13 | 3.79 | N/A | 1440*1340*1600 |
| ANH-NHP-20 | 20 | 24 | 7.58 | 0.2 | 2200*1435*1800 |
| ANH-NHP-30 | 30 | 34 | 11.36 | 0.2 | |
| ANH-40 | 40 | 36 | 15.15 | 0.25 | 1870*2065*2570 |
| NHP-40 | 40 | 3 | N/A | 1530*880*2010 | |
| ANH-50 | 50 | 44 | 18.94 | 0.25 | 1870*2065*2570 |
| NHP-50 | 50 | 3 | N/A | 1530*860*2010 | |
| ANH-60 | 60 | 52 | 22.73 | 0.25 | 1870*2065*2570 |
| NHP-60 | 60 | 3 | N/A | 1530*860*2010 | |
| ANH-70 | 70 | 58 | 26.52 | 0.42 | 1870*2065*2570 |
| NHP-70 | 70 | 6 | N/A | 1480*900*2050 | |
| ANH-80 | 80 | 64 | 30.30 | 0.42 | 1870*2065*2570 |
| NHP-80 | 80 | 6 | N/A | 1480*900*2050 | |
| ANH-90 | 90 | 88 | 34.09 | 0.65 | 1990*2295*2580 |
| NHP-90 | 90 | 6 | N/A | 1800*1000*2050 | |
| ANH-100 | 100 | 83 | 37.88 | 0.65 | 1990*2295*2580 |
| NHP-100 | 100 | 6 | N/A | 1800*1000*2050 | |
| ANH-110 | 110 | 104 | 41.67 | 0.65 | 1990*2295*2580 |
| NHP-110 | 110 | 6 | N/A | 1800*1000*2250 | |
| ANH-120 | 120 | 104 | 45.45 | 0.65 | 1990*2295*2580 |
| NHP-120 | 120 | 6 | N/A | 1800*1000*2250 | |
| ANH-140 | 140 | 117 | 53.03 | 0.85 | 1990*2295*3078 |
| NHP-140 | 140 | 9 | N/A | 1800*1000*2450 | |
| ANH-150 | 150 | 138 | 56.82 | 0.85 | 1990*2295*3078 |
| NHP-150 | 150 | 9 | N/A | 1800*1000*2650 | |
| ANH-160 | 160 | 138 | 60.61 | 0.85 | 1990*2295*3078 |
| NHP-160 | 160 | 9 | N/A | 1800*1000*2650 | |
| ANH-180 | 180 | 155 | 68.18 | 1.15 | 2290*2620*3100 |
| NHP-180 | 180 | 13.5 | N/A | 2150*1000*2785 | |
| ANH-200 | 200 | 155 | 75.76 | 1.15 | 2290*2620*3100 |
| NHP-200 | 200 | 13.5 | N/A | 2150*1000*2595 | |
| ANH-250 | 250 | 196 | 94.70 | 1.3 | 2520*2775*3150 |
| NHP-250 | 250 | 13.5 | N/A | 2150*1000*2600 |
Factory Certificates
FAQ
Q: Are you a factory or a trading company?
A:We are a factory over 20 years industrial experience.
Q: Do you offer OEM service?
A: Yes, we can customize it as your request.
Q: What is your lead time?
A: About 60~90 days after receiving deposit.
Q: What certificates do you have?
A: We have ASME, CE, ISO9001-2015, ISO13485 for medical oxygen generator. And we can apply for specific certificate for different country such as SONCAP for Nigeria, SASO for Saudi Arabia, etc
Q: What about the warranty?
A: Beyond warranty period(For 12-Months against any manufacturing defect from the date equipment acceptance after commissioning or 18-months from the time of the delivery whichever comes first),supplier will provide spare parts, accessories, easily damaged parts via preferential price.
Q:What service do you offer?
A: Pre-sales service, in-sales service, after-sales service. If you become our local distributor, we can introduce end-customers to purchase from you.
Q:Which port is near to you?
A: Qingdao port or Tianjin port. And we can arrange to deliver Guangzhou, Shanghai, Urumqi, or other Chinese cities, too.
Q:Could you offer Origin Certification.
A: we can do as your request.
